MaxiPENDANT, MaxiDOME
& MaxiDISK —
DMX RGBW suspended decorative.
MaxiPENDANT 64mm / 2.52 in — DMX RGBW Track Pendant
Patent-pending easy-install pendant system for low-power DMX projects over any 2-core 1.5 or 2.5 mm² cable. The DMX install is the same wiring as a static install — DMX runs on the back of the power. Compatible with 3-phase track and adapters (1 phase removed). All drivers and control can be housed up to 75 m / 246 ft from the lighting.

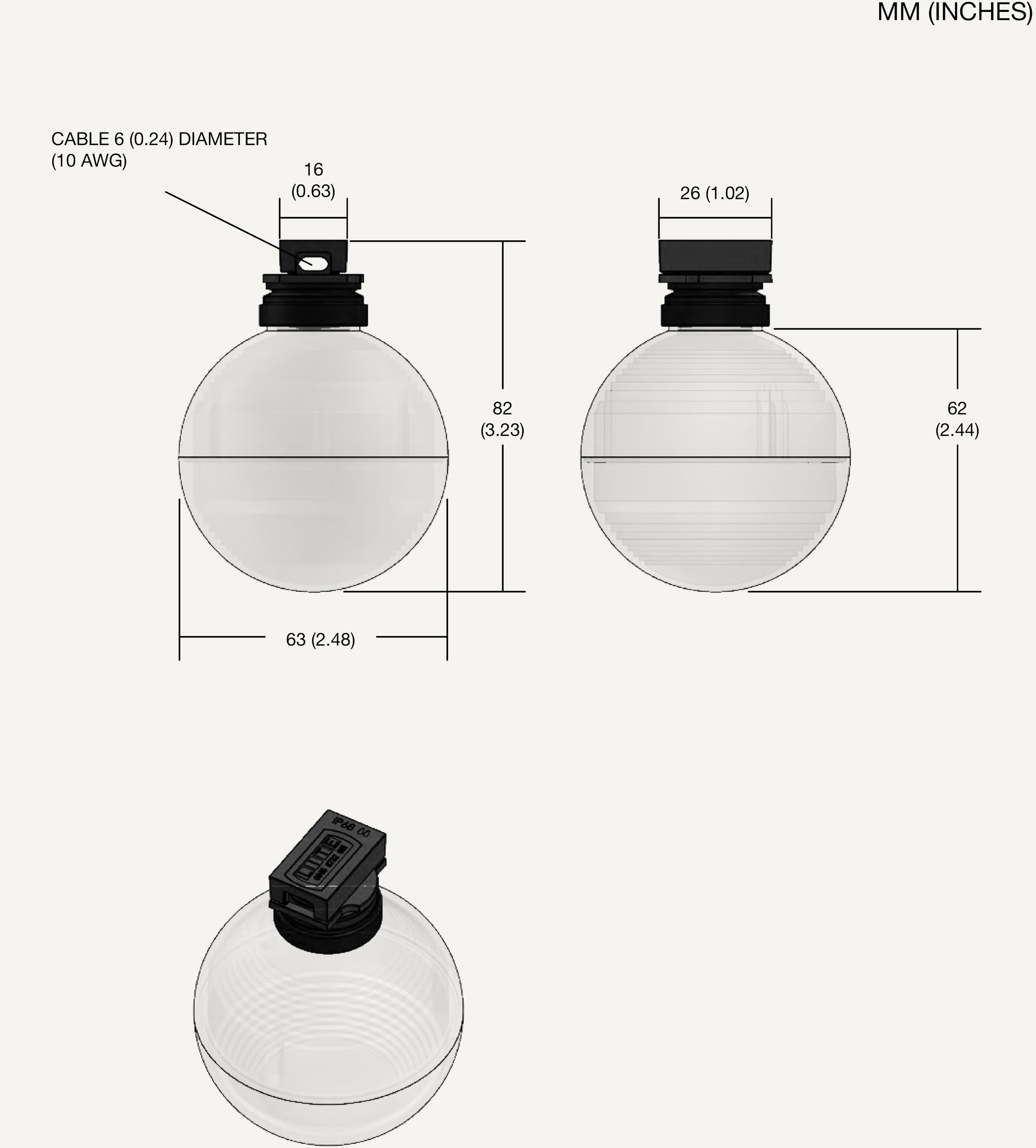

63 mm / 2.48 in globe · contemporary minimal
Compact 63 mm / 2.48 in globe head suspended from a black hollow rod or clear flexible cable. The minimal silhouette designers default to for hospitality canopies, hotel courtyards and urban terrace lighting.
DMX 512 over 2-core power cable
Patent-pending architecture: DMX data rides on the back of the 48 VDC power through any 2-core 1.5 or 2.5 mm² cable. Same wiring as a static install — the simplest DMX install on the market, especially for installers not experienced in DMX systems.
EUTRAC 3-phase track compatible
Fits standard 3-phase track and adapters with 1 phase removed. The DMX runs on the back of the track power and addresses each individual fixture — drop, hang, program. Used for retail, hospitality and showroom canopies that need both retrofit speed and chromatic flexibility.
Drivers up to 75 m / 246 ft from the lighting
All drivers and control electronics can be housed up to 75 m / 246 ft from the fixtures — equipment room, plant area, hidden ceiling void. The canopy itself stays visually clean: pendant + minimal cable, no driver boxes overhead.
IP68 globe · IK07 · 5-year warranty
The globe head is sealed to IP68 — rated for permanent outdoor canopies. IK07 impact rating for the install environment. 5-year manufacturer warranty on the full assembly.
- 01Fix the base plate. Anchor the pendant base flange to the fixing surface (soffit, ceiling, catenary rail, cross-beam) with the two supplied stainless-steel screws. Confirm pull-out load and torque against local building code.
- 02Route the cable inside the rod. Feed the 2-core MaxiLINK cable through the hollow rigid support rod from the fixing plate down to the fitting position. Rod length is variable — maximum 1.5 m per drop.
- 03Attach the globe. Fit the 63 mm globe onto the sealed connector at the bottom of the rod. Wire the branch cable to the next fitting or terminate at the strand end. Polarity-independent, DMX 512 addressed automatically.
- 04Repeat · commission. Repeat Steps 1–3 for each drop. Vary rod length between fittings for a rhythmic cascade. Up to 50 fittings per strand. Connect the strand to the MaxiLINK source and commission over DMX 512.

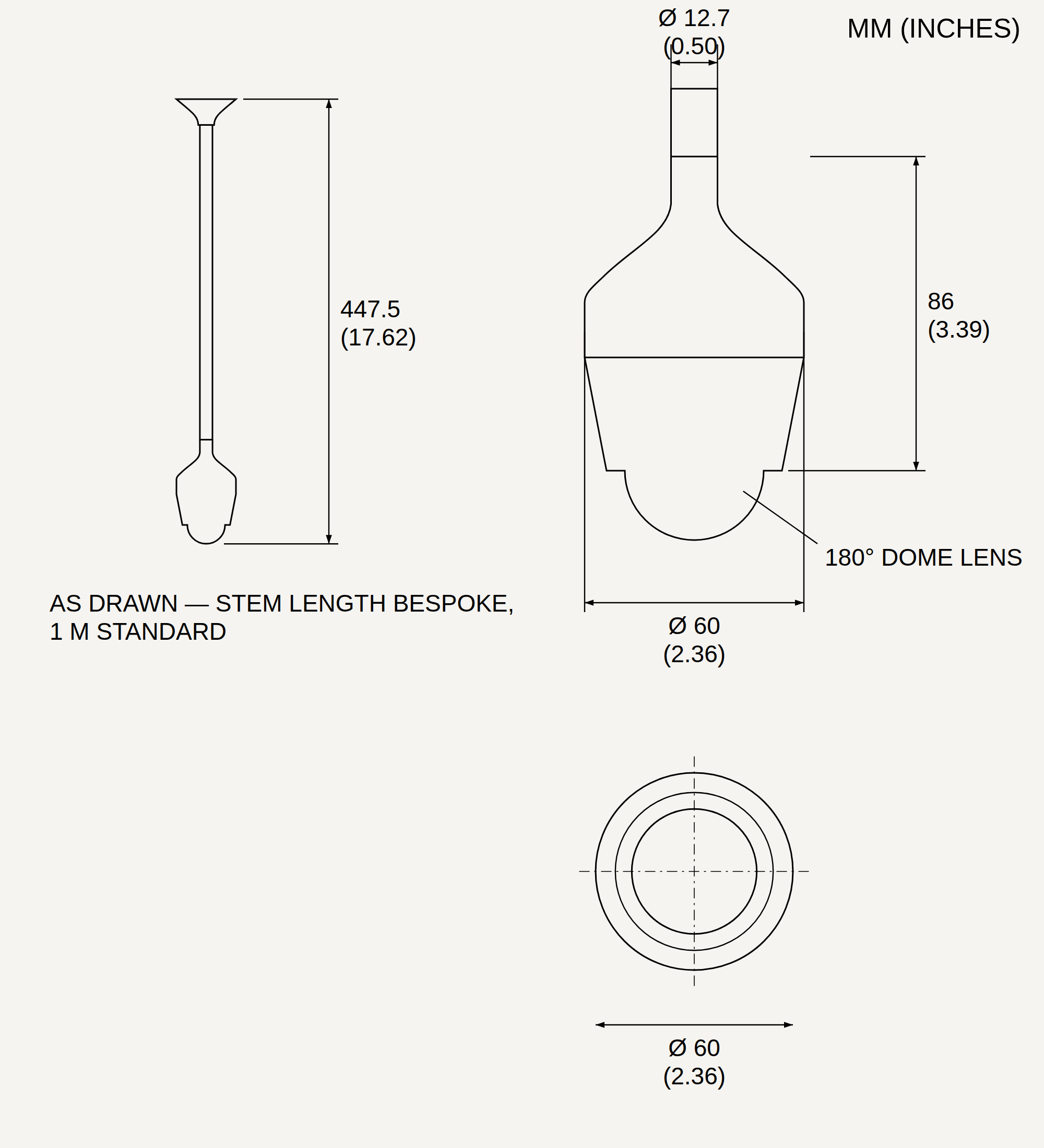

MaxiDOME — DMX RGBW Dome Pendant
MaxiDOT head on a rigid stem and canopy, closed with a 180° dome lens for wide, soft wash from a suspended point. Multi-chip RGBW or Intelligent White, fully addressable over DMX 512 on the MaxiLINK 2-core architecture — power and data share the same two conductors. Stem length, canopy and finish are made to the project brief.
180° dome optic · Ø 60 mm
Clear dome lens over the MaxiDOT head, spreading light through a full 180° from a single suspended point. The wide register of the pair — soffits, canopies and interiors where the pendant has to light a volume rather than a surface.
50 fixtures per run · 100 m (330 ft)
Up to 50 pendants on a single 1.5 mm² run from one supply point, every fixture individually addressable over DMX 512. 4.8 W and 200 mA per fixture keeps a full run inside a modest supply budget.
MaxiLINK · 2-core · 48 VDC SELV
Same architecture as the rest of the MaxiLED catalog: 48 VDC power and DMX 512 data share the same two conductors, so the DMX install is wired like a static one. Drivers and control stay in the plant room.
Stem, canopy and finish to requirement
1 m stem is the standard price-list length; stem lengths, canopy dimensions, cable termination and finish are made to the project brief. Compatible with most track adapters — email MaxiLED with your requirements and we will check and advise.
Stem length 1 m as standard. Other stem lengths, canopy dimensions and terminations are bespoke to the project — contact MaxiLED with your requirements.

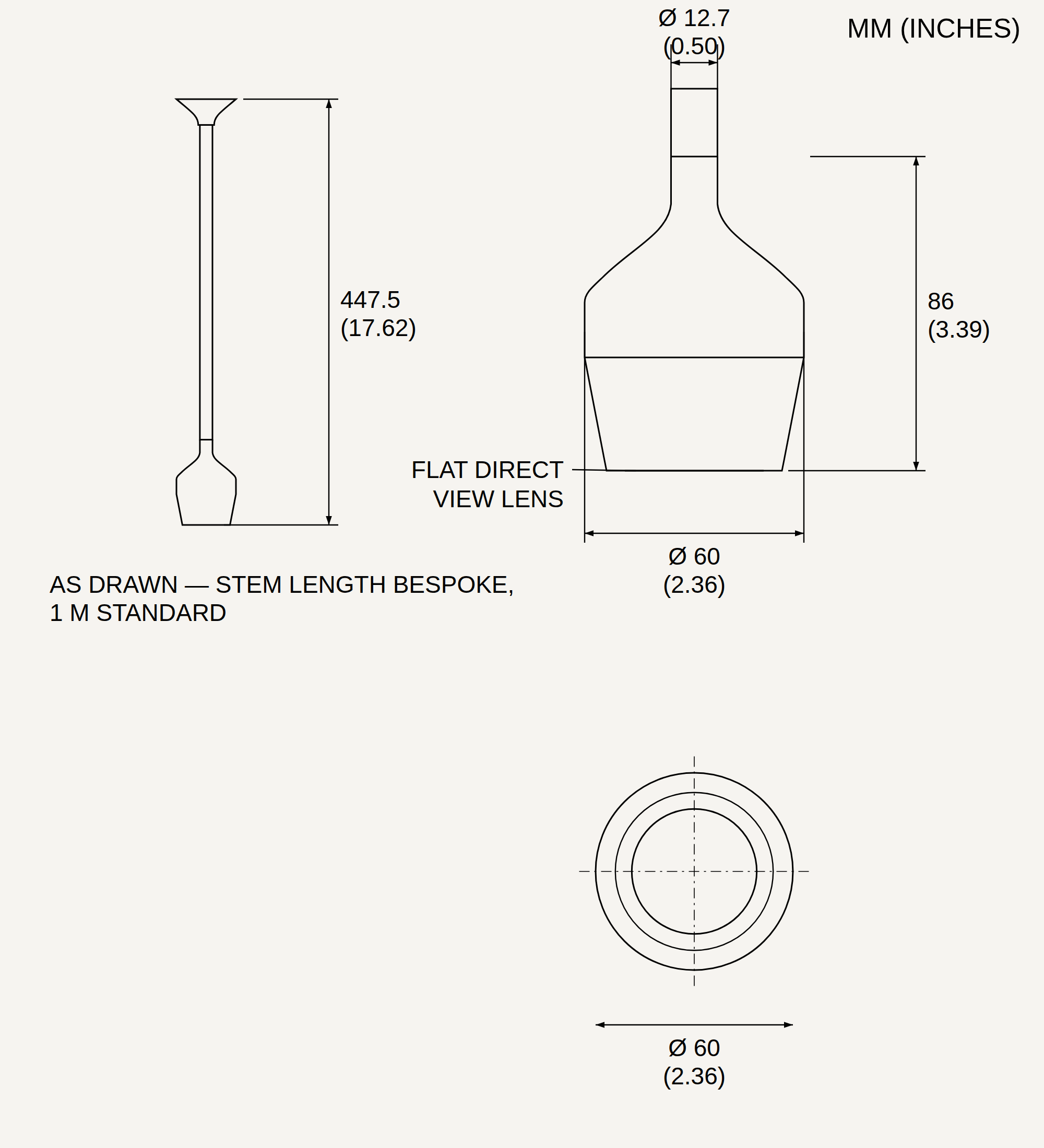

MaxiDISK — DMX RGBW Flat Pendant
The same MaxiDOT pendant body as the MaxiDOME, closed with a flat Direct View lens. The LED reads as a crisp lit disc rather than a glowing dome — the graphic register, for rhythmic runs over bars, counters and reception desks. Multi-chip RGBW or Intelligent White, DMX 512 addressable over the MaxiLINK 2-core architecture.
Flat Direct View optic · Ø 60 mm
Flush flat lens: the source reads as a clean lit disc, with a tighter, more graphic presence than the dome. Same body, same electronics — the choice between DISK and DOME is purely how the fitting should look when lit.
50 fixtures per run · 100 m (330 ft)
Up to 50 pendants on a single 1.5 mm² run from one supply point, every fixture individually addressable over DMX 512. 4.8 W and 200 mA per fixture keeps a full run inside a modest supply budget.
MaxiLINK · 2-core · 48 VDC SELV
Same architecture as the rest of the MaxiLED catalog: 48 VDC power and DMX 512 data share the same two conductors, so the DMX install is wired like a static one. Drivers and control stay in the plant room.
Stem, canopy and finish to requirement
1 m stem is the standard price-list length; stem lengths, canopy dimensions, cable termination and finish are made to the project brief. Compatible with most track adapters — email MaxiLED with your requirements and we will check and advise.
Stem length 1 m as standard. Other stem lengths, canopy dimensions and terminations are bespoke to the project — contact MaxiLED with your requirements.
