Eco Accent Series — in detail.

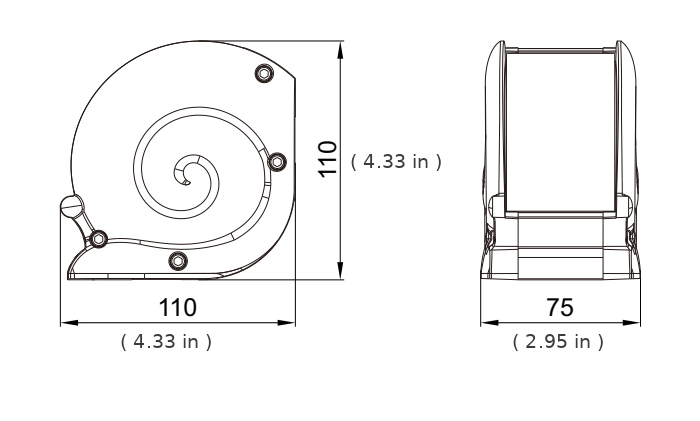

MaxiSnail Window Wall Washer
A single-colour LED window wall washer in a high-strength aluminium-alloy housing with a tempered glass front. Its bionic shell form doubles as an optical shield — the arched profile screens the LED from direct view, so the eye reads the washed surface, not the fitting. An ultra-narrow 10° × 120° strip optic lays an even band of light up the full height of a window opening from one compact fixture.
Bionic shell optical shield
The arched shell profile screens the LED from direct view — the eye reads the washed surface, not the luminaire.
Ultra-narrow strip optic
10° × 120° distribution lays an even vertical band of light grazing the full height of a window opening from one compact fitting.
Three mounting orientations
The bracket releases with two screws and clips back into a card slot, allowing three distinct orientations on the same fixing plate.
IP66 · −40 °C to +50 °C (−40 °F to +122 °F)
Aluminium-alloy body and tempered glass, rated for permanent outdoor installation. DC 24V with a remote driver.

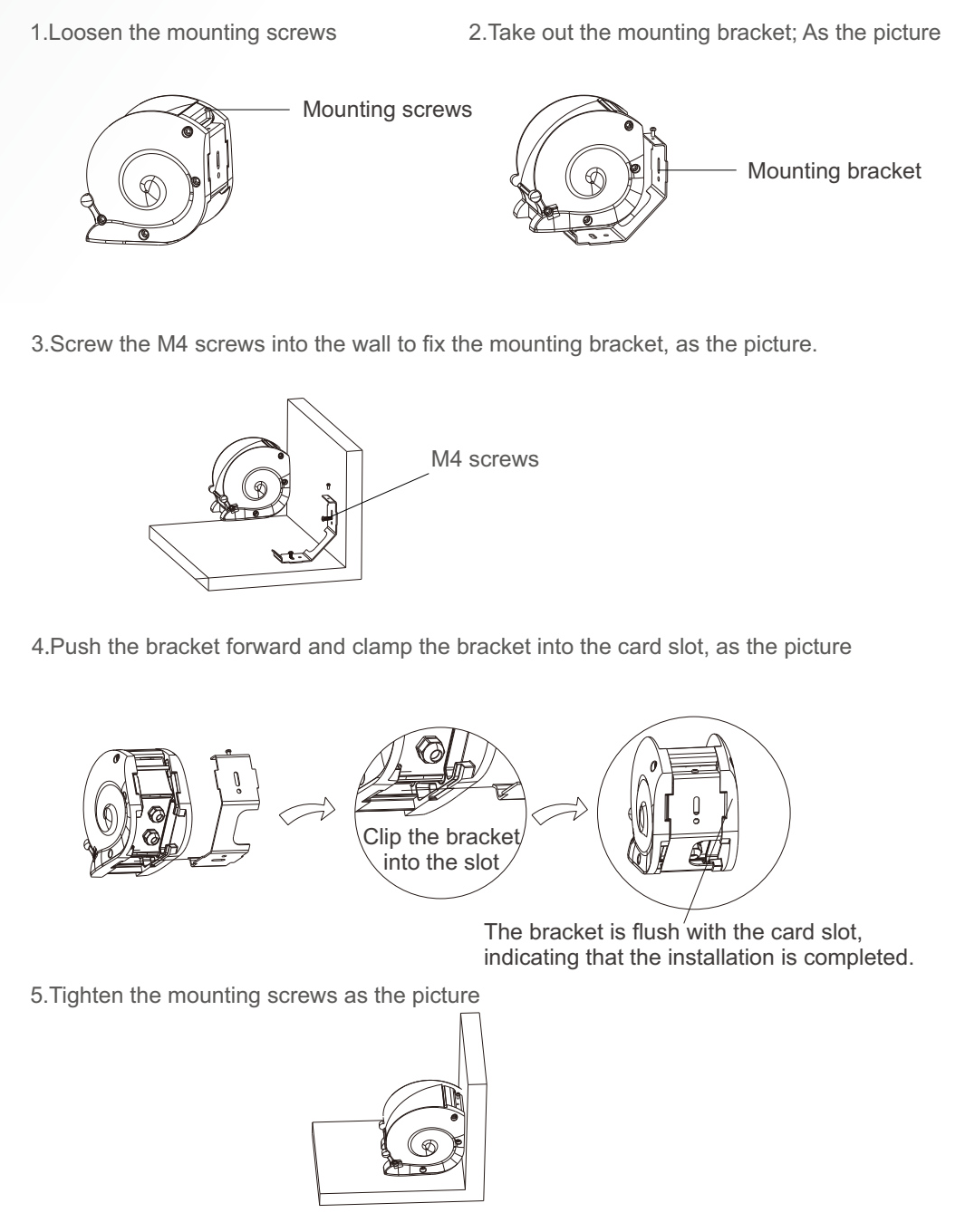

Loosen and remove the mounting bracket, fix it to the wall with 2 × M4 screws, then push the body forward until the bracket clips flush into the card slot and re-tighten the mounting screws. Installation by a qualified electrician per local codes; remote DC 24V driver not included.

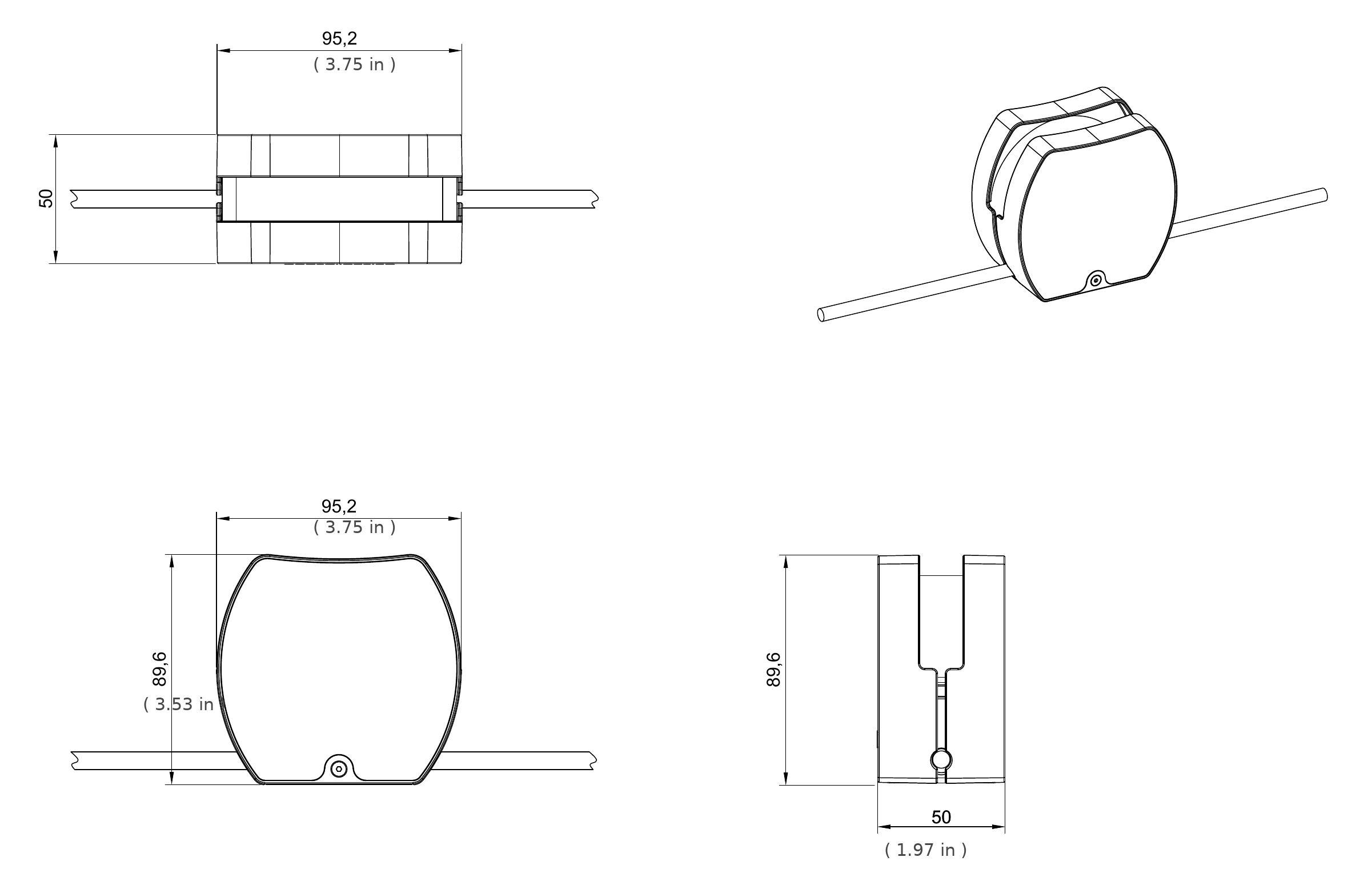

MaxiEDGE ECO Window & Cove
A compact LED luminaire for architectural window, niche and cove lighting, with wide asymmetric 3×180° / 5×180° distribution. The White 3000K version is DALI-dimmable with CRI ≥ 90; the RGBW version runs on DMX512. High-power LEDs, IP66 for indoor and outdoor niches.
Window, niche & cove wash
Wide 3×180° / 5×180° asymmetric distribution grazes sills, niches, alcoves and pelmet coves from one compact fitting.
CRI ≥ 90 warm white
DALI-dimmable White 3000K with high colour rendering for residential and retail interiors.
Dynamic RGBW
Full colour on DMX512 — hospitality interiors, feature walls and facade coves.
LED · IP66
high-power LEDs in a slim black housing, rated IP66 for indoor and outdoor niche installation.

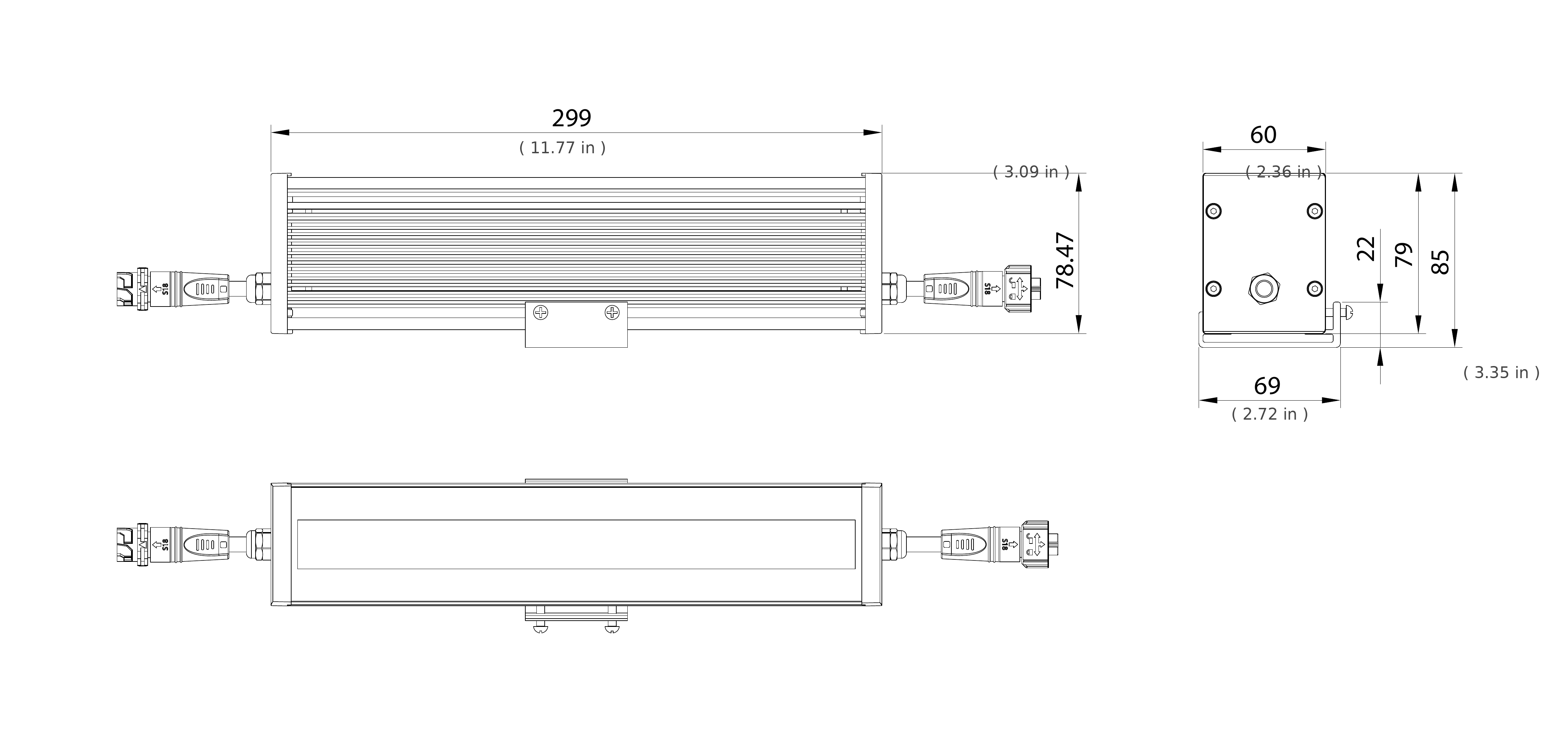

MaxiEDGE ECO Linear Cove & Window
A linear LED luminaire for window and cove lighting, with 3×120° distribution — a continuous line of light for reveals and perimeter runs. Available in 299, 449 and 599 mm lengths. Warm White 3000K on DALI or dynamic RGBW on DMX512. High-power LEDs, CRI ≥ 90, IP66.
Continuous line of light
A linear graze for window reveals, cove and perimeter runs — a defined line rather than a wall wash.
Three lengths
Available in 299, 449 and 599 mm (11.8 / 17.7 / 23.6 in) — mix lengths to suit reveal and cove runs.
White or RGBW
Warm 3000K on DALI or full RGBW colour on DMX512.
LED · IP66
high-power LEDs, CRI ≥ 90, black housing, IP66 for indoor and outdoor coves.

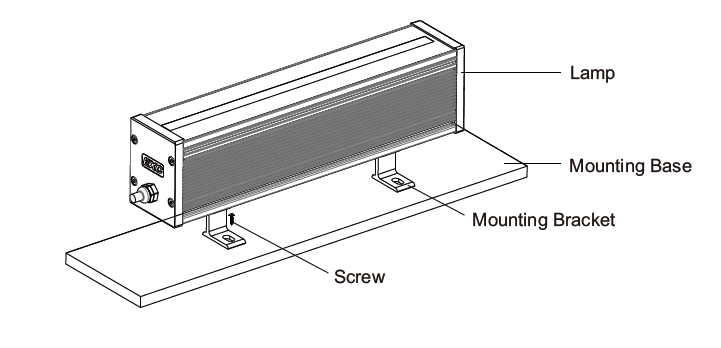

- 01Fix the mounting bases to the required positions with M6 expansion screws — spacing in accordance with the length of the light.
- 02Seat the lamp onto the mounting brackets / bases and secure it with the mounting-seat fixing screws; check it is firm.
- 03Connect the male and female ends of the waterproof connector through the thread.
Note. Installation must be carried out by a qualified electrician per local electrical and construction codes. Remote DC 24V driver not included.
