Core Flood Lights — in detail.

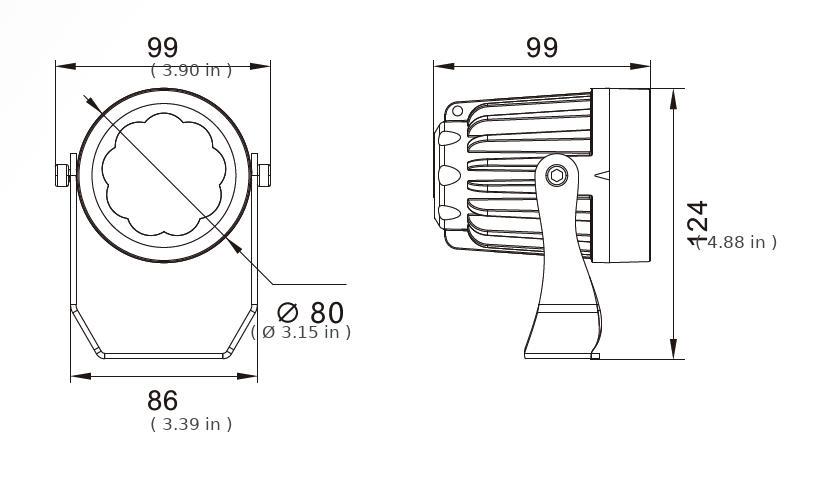

MaxiPUNCH Core Small
A compact LED projector for architectural and landscape illumination — façade accenting, wall grazing and feature lighting. High-power LEDs, CRI ≥ 90, on an adjustable bracket. White 3000K (DALI) or RGBW (DMX512).
Compact projector
Small die-cast projector for façade accenting, wall grazing and feature lighting on an adjustable bracket.
LED · CRI ≥ 90
High-quality LEDs with ≥ 90 colour rendering on the White version.
White or RGBW
Warm 3000K dimming on DALI, or full RGBW colour on DMX512.
IP66
Sealed for permanent outdoor architectural and landscape installation.

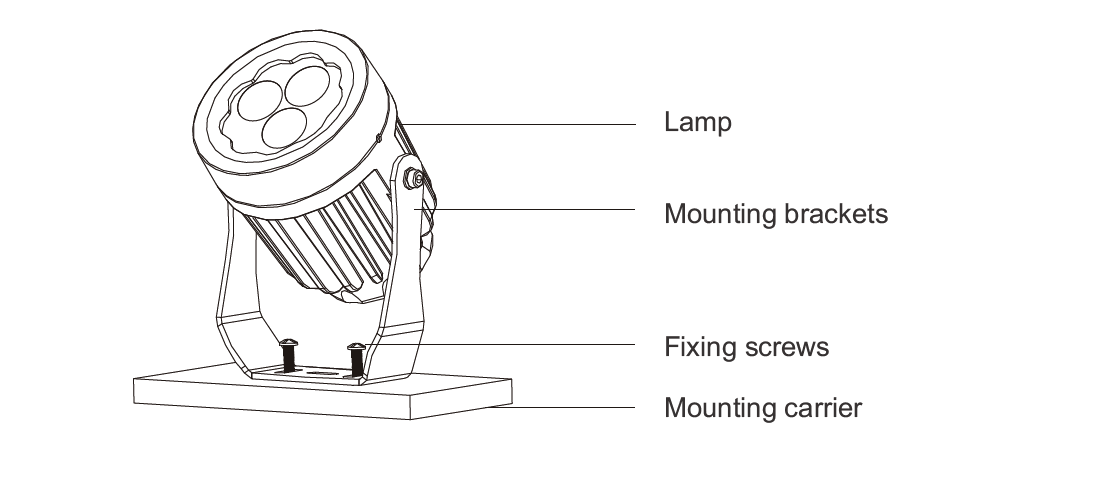

- 01Place the lamp on the mounting carrier at the required position — confirm the lamp spacing.
- 02Tighten the bracket fixing screws on the carrier, then tighten the mounting-base fixing screws; check it is firmly fixed.
- 03Adjust the aiming angle of the lamp.
Note. Installation must be carried out by a qualified electrician per local electrical and construction codes. Remote DC 24V driver not included.

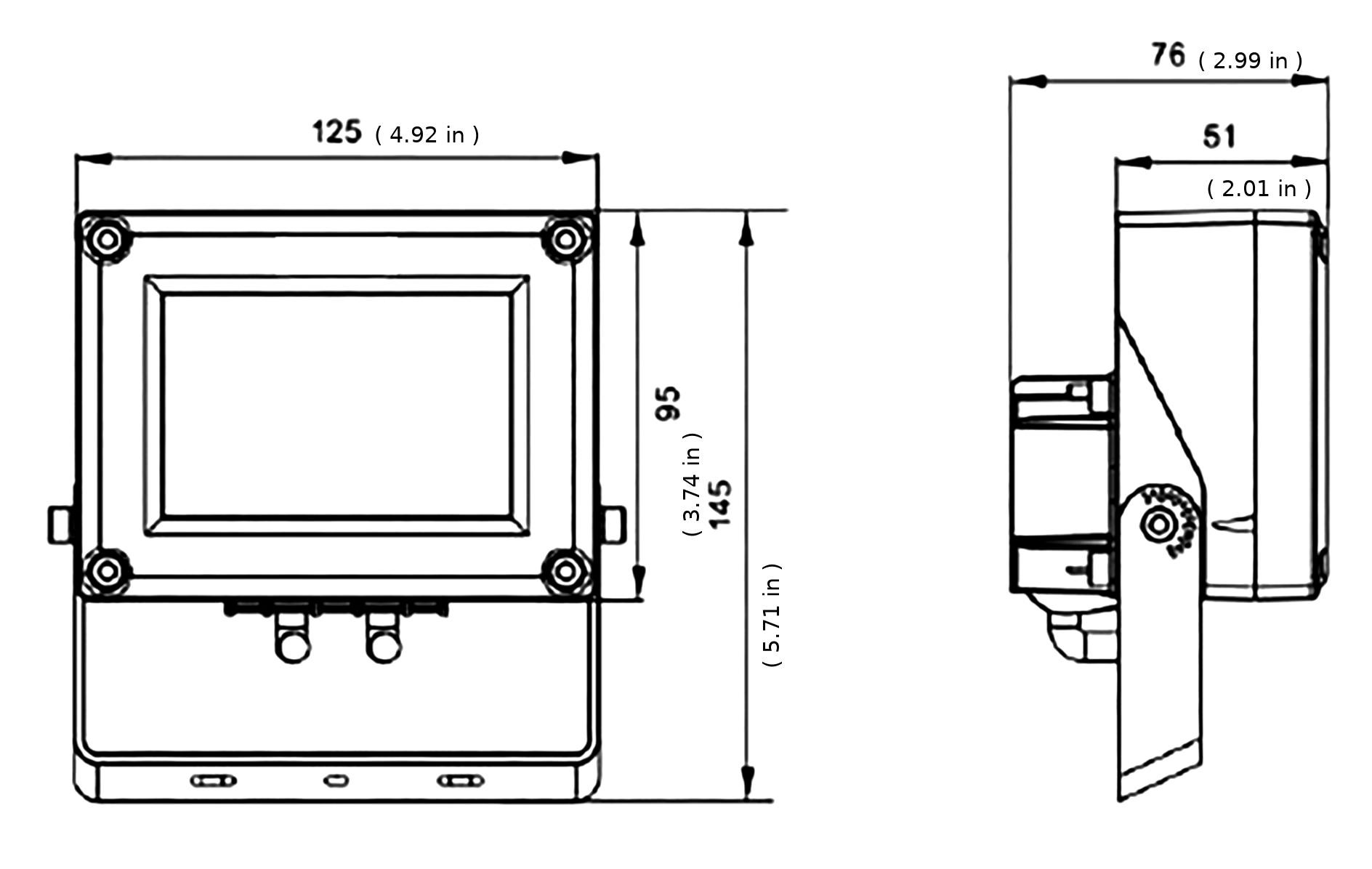

MaxiPUNCH Core Medium
A mid-power LED flood light for medium-throw façade and feature lighting, surface-mounted with an adjustable bracket. High-strength die-cast aluminium with tempered glass. Two models: White 3000K (6×W, ON/OFF) and RGB (2×R+2×G+2×B, DMX512).
Mid-power flood
Medium-throw façade and feature flood in a rectangular 6-LED body.
Surface-mount bracket
Adjustable bracket for precise aiming on walls and structures.
Two colour modes
White 3000K on ON/OFF, or full RGB colour on DMX512.
Die-cast · IP66
High-strength die-cast aluminium with tempered glass, sealed IP66 for permanent outdoor use.

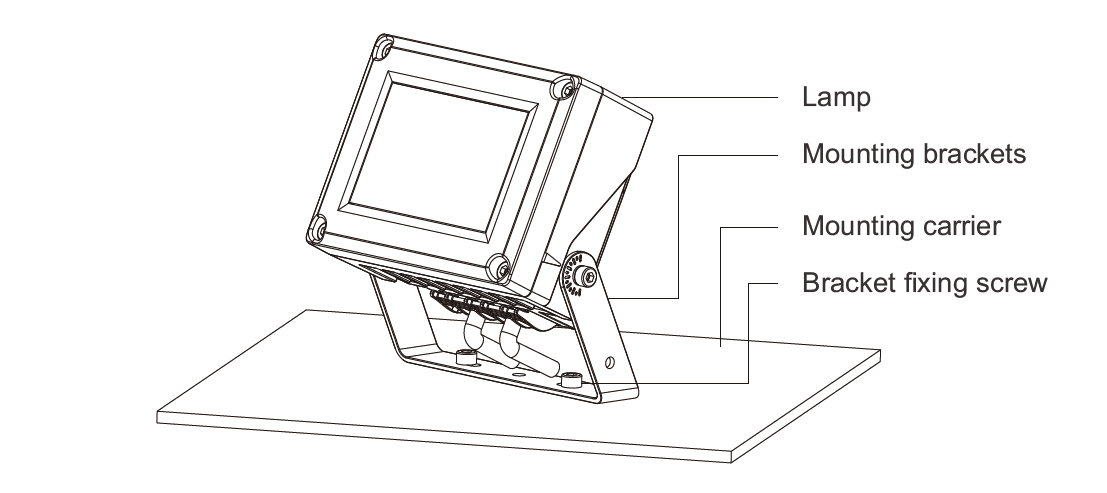

- 01Fix the lamp mounting bracket to the required position with M5 screws.
- 02Once the lamp is firmly installed, adjust the aiming angle as needed, then lock the connection screws.
Note. Installation must be carried out by a qualified electrician per local electrical and construction codes. Remote DC 24V driver not included.
MaxiPUNCH Core Large
A high-output LED flood / PAR projector on 48 V architecture for long-throw and large-surface projects. High-power LEDs, CRI ≥ 90, adjustable bracket. White 3000K (DALI) or RGBW (DMX512).
High-output PAR projector
18-LED PAR projector for long-throw façade and large-surface projects.
48 V architecture
DC 48 V supply for longer cable runs and higher power.
LED · CRI ≥ 90
high-power LEDs with ≥ 90 colour rendering on the White version.
White or RGBW
Warm 3000K on DALI or full RGBW colour on DMX512.
