Home/Case Studies/Bourbon Street, New Orleans
Memorial · Architectural Lighting Display

Bourbon Street

Second Line in the Sky — a public memorial across three blocks of the French Quarter. Design by Studio West.

Bourbon Street · New Orleans, Louisiana · USA
Concept & Lead Design
Studio West
Jennie Cannon West & Jason Richards
Location
100, 200 & 300 Blocks
Bourbon Street, New Orleans
Installation
Second Line in the Sky
Memorial & Lighting Display
System
Turnkey integration
MaxiLED + Lumentender Control Solutions
Products
1,248 × MaxiGlobe RGBW
12 strings · 3 blocks
Control
Lumentender LT-1BOX
6 DMX universes · wireless sync
Community
New Orleans community
private fundraising
Rep · Photography
Curtis Stout (Louisiana)
David Mora
Background

A memorial that lifts a city’s gaze.

On Bourbon Street, light was never going to be enough on its own. The brief for Second Line in the Sky was specific and unflinching: build a public memorial that holds the fourteen lives lost on January 1, 2025, while still letting the French Quarter breathe.

Designed by Studio West with the New Orleans community, the installation suspends nearly 1,000 hand-painted prayer flags across the 100, 200 and 300 blocks. The flags on the 100 block carry messages and photographs contributed by the victims’ loved ones — words and images of those who knew them, raised above the street.

Above the flags, illuminated umbrellas, mineral-fibre trumpets in white and gold, and a steady canopy of MaxiGlobe spheres turn three blocks of street into a slow-moving second line — overhead instead of underfoot. Grief and celebration in the same breath. The way New Orleans does it.

The architectural backbone of the canopy is a fully integrated turnkey system: MaxiLED on the lighting side and Lumentender Control Solutions on the Cloud control side, delivered through their proprietary LT-1BOX power and controls enclosures. The MaxiGlobe RGBW string system had to disappear into the aesthetic of the installation while carrying every demanding technical requirement — color fidelity, wireless block-to-block synchronization, IP68 weather resistance for an open-sky Louisiana winter, and the flexibility to chase, twinkle and breathe in time with the sculptural elements above it.

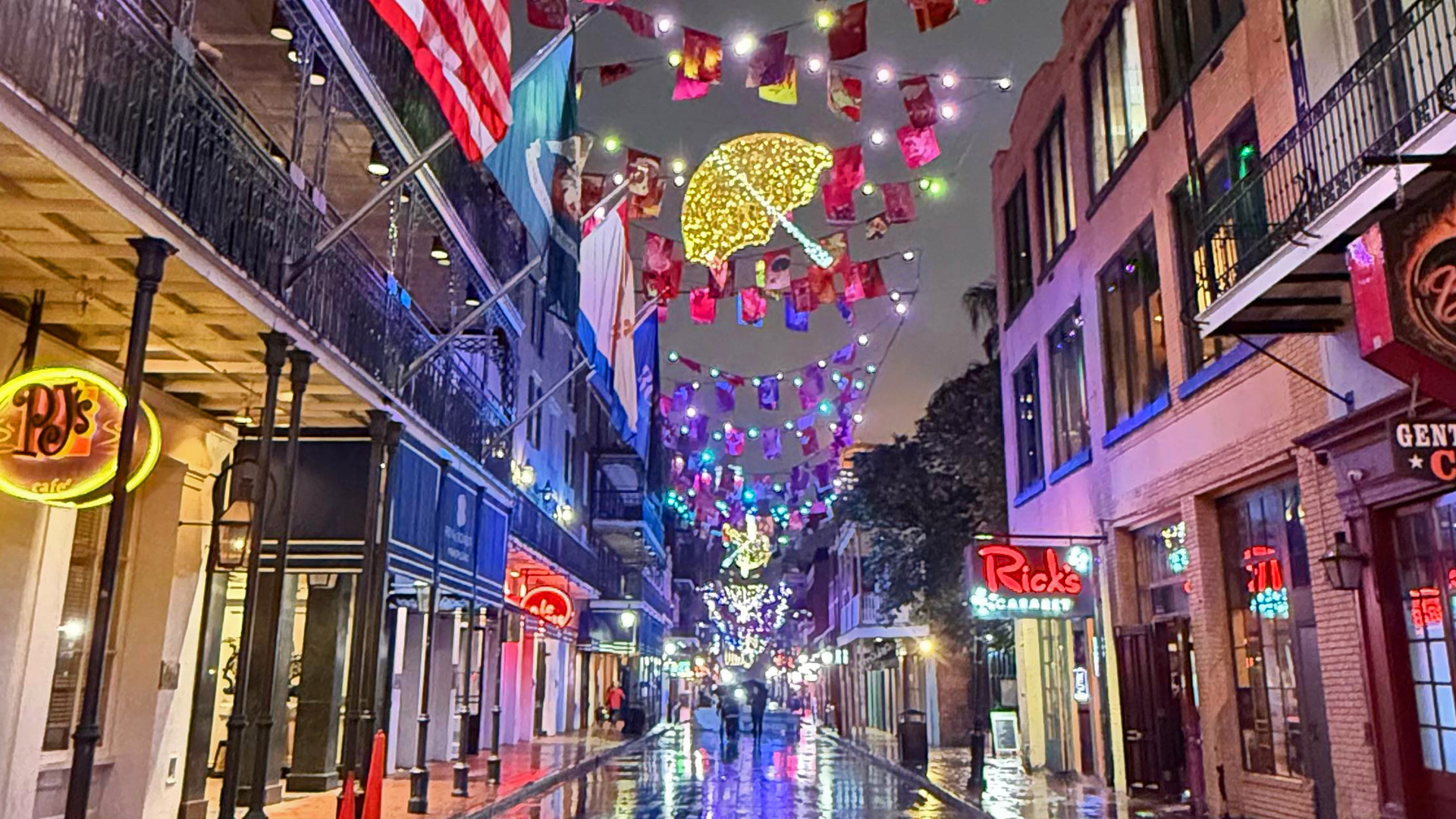

Bourbon Street · canopy in operation
MaxiGlobe RGBW canopy — Second Line in the Sky, Bourbon Street

“Within each flag carried a story. We needed a canopy that could illuminate these stories and the many memories these individuals left with us. We wanted something accessible and visible day and night, with a rhythm and color that brought new light, peace, and healing for our community. MaxiGlobe did just that.”

— Jennie Cannon West & Jason Richards · Studio West · Lead Design
Design

A catenary field, synchronized across three blocks.

The installation is built on a catenary system spanning roughly 21 feet across Bourbon Street in a zig-zag pattern. Each block carries 416 globes distributed across four strings, with each run mirrored from the opposite side of the street to create symmetrical pairs — a total of twelve strings and 1,248 MaxiGlobe RGBW units across the three blocks.

Within this canopy, illuminated sculptures — three to four umbrellas per block, plus mineral-fibre trumpets in white and gold — are integrated with embedded miniLED strings driven on three color temperatures (warm, neutral, cool). The miniLEDs are programmed to twinkle and chase outward from the trumpet bells in flattened conical bursts, evoking music breaking out of brass. The MaxiGlobe canopy underpins all of it: the steady, color-accurate field against which the sculptural moments stand out.

All three blocks take their cue from a central controller in the 200 (middle) block — the LT-1BOX power and controls enclosures from Lumentender Control Solutions, which runs six DMX universes and triggers every show cue. From the 200 block, LT-1BOX transmits wirelessly to the 100 and 300 blocks — block-to-block synchronization without boring under streets or sidewalks in the French Quarter. Every block plays back in lockstep; every globe is individually addressable.

Programme & range

A living memorial, lit from within.

What MaxiGlobe contributes here is restraint. The product is engineered to be individually addressable, but on Bourbon Street it spends most of its life holding a single warm tone — a steady, breathing canopy under which the prayer flags can be read, and over which the trumpets and umbrellas can do their work.

When the program calls for movement, the entire system shifts as one: warm gradients of red, pink and orange that echo the painted flags above, occasionally cooling into the winter blues that frame them.

The result is a public space that does not ask visitors to choose between mourning and celebration. It holds both. Light becomes the medium through which fourteen names are kept in view — and through which a city continues to gather.

“This full color-changing installation had to work outside in January on a tight build timeline. Based on similar installations shared by MaxiLED, I was totally confident that they were the right choice for this special project.”

— Jerry Sarradet · Curtis Stout · Manufacturer’s Representative, Louisiana
Turnkey system · Product focus
System specified
MaxiGlobe RGBW

Individually addressable full-spectrum festoon globe on the MaxiLINK platform — a single 2-core cable carries 48 VDC and DMX control across every globe on the strand. Paired here with LT-1BOX power and controls enclosures for six DMX universes and wireless block-to-block synchronization across the French Quarter, with no boring under streets or sidewalks.

Power input48 VDC · Data over Power
Watts / globe2.35 W at full RGBW
Units installed1,248 × MaxiGlobe RGBW
Run length175 m max · up to 100 globes/strand
EnvironmentIP68 · dry, damp & wet locations
ImpactIK07
DMX & wireless6 DMX universes · LT-1BOX wireless sync
ListingsUL · cUL · CE · FCC · BS EN 60598 · IEC 60598
Project partners
Concept & Lead Design
Studio West — Jennie Cannon West & Jason Richards
Community & funding
New Orleans community — private fundraising
Lighting supply
MaxiLED — MaxiGlobe RGBW system
Control & show programming
Lumentender Control Solutions — LT-1BOX enclosures
Manufacturer’s Representative
Jerry Sarradet — Curtis Stout (Louisiana)
Photography
David Mora
