MaxiLED lighting — MaxiLED Globe series

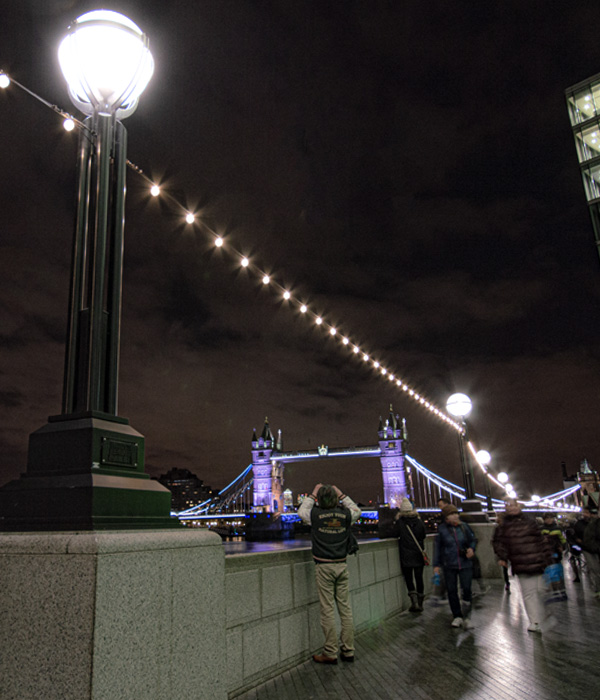

River Thames Embankment - London

MaxiLED Large Globe Static
MaxiLED Large Globe series

DMX Controllable - Blackpool Promenade
State Restaurant - Melbourne

MaxiLED Small Globe Static
Coastal Festoon lighting

MaxiLED Large Globe Static
Functional Festoon lighting

MaxiLED Large Globe High Output
Tree Festoon lighting

MaxiLED Large Globe Static

Key Features

• UL Listed

• Available in 512 DMX Controllable

• Available in Static Colours

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• 5 year Warranty

Description

The MaxiLED Lighting Globe Series provides exceptionally long strands of globe-lensed LEDs that effectively outline trees, landscaping, buildings and bridges with color-changing lighting effects. The product family also includes excellent LED 2-wire technology options for retro-fitting static installations. Each strand is built for permanent installations with rugged, injection-molded outer globes, heavy gauge wiring, and dependable CREE LEDs. MaxiLED Globe series is available in 2 sizes, Large (64mm) and Small (34mm) globe.

MaxiLED Large Globe Series

DMX RGBW Controllable

Full DMX-controllable RGBW.

• 512 DMX Controllable

• Available in Intelligent White

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm)

• End of Line Resistor Required

High Output

Functional Lighting
Maximum brightness, Minimum power.

• High Lumens

• Available in 2700K and 6500K

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm).

Static Colours

Festoon lighting with multiple applications along Coastal paths, Pedestrian paths and Decorative lighting.

• Available in Cool White, Warm White, Blue, Red, Green and Amber

• Various colours can be combined together

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm).


MaxiLED Large Globe series
	Full DMX Controllable	High Output	Static Colours	Random Colour Change
RGBW: DMX control of individual LED nodes
High Output: Cool White and Warm White
Single Colors: Cool White, Warm White, Blue, Red, Green and Amber
RGB: Random red, green, and blue effects.
48Volts / 2.4 Watts per globe
24Volts / 1.5 Watts per globe
24Volts / 0.6 Watts per globe
12Volts / 0.6 Watts per globe
End of Line Resistor Required
IP68 IP Rating
Frosted globe option available
IK07 Impact Rating
UL/cUL Listed
BS EN 60598, IEC 60598
5 Year Warranty
Power Input: 110-240VAC (50/60 Hz) on all models

MaxiLED Small Globe Series

Static Colours

Festoon lighting with multiple applications along Coastal paths, Pedestrian paths and Decorative lighting.

• Available in Cool White, Warm White, Blue, Red, Green and Amber

• Various colours can be combined together

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 1-3/8 in (34 mm).

Random Colour Change

Festoon lighting with multiple applications along Coastal paths, Pedestrian paths and Decorative lighting.

• Available in Large and Small Globe

• Random colour change in Blue, Red and Green

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 1-3/8 in (34 mm).

Frosted Globe Option

Offers a softer palette of colours with an alterative aesthetic appeal


MaxiLED Small Globe series
	Static Colours	Random Colour Change
Single Colors: Cool White, Warm White, Blue, Red, Green and Amber
RGB: Random red, green, and blue effects.
24Volts / 0.6 Watts per globe
12Volts / 0.6 Watts per globe
IP68 IP Rating
Frosted globe option available
IK07 Impact Rating
UL/cUL Listed
BS EN 60598, IEC 60598
5 Year Warranty
Power Input: 110-240VAC (50/60 Hz) on all models

Key Features

• UL Listed

• Available in 512 DMX Controllable

• Available in Static Colours

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• 5 year Warranty

Description

MaxiLED Large Globe Series

DMX RGBW Controllable

• 512 DMX Controllable

• Available in Intelligent White

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm)

• End of Line Resistor Required

High Output

• High Lumens

• Available in 2700K and 6500K

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm).

Static Colours

• Available in Cool White, Warm White, Blue, Red, Green and Amber

• Various colours can be combined together

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 2-1/2 in (64 mm).

MaxiLED Small Globe Series

Static Colours

• Available in Cool White, Warm White, Blue, Red, Green and Amber

• Various colours can be combined together

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 1-3/8 in (34 mm).

Random Colour Change

• Available in Large and Small Globe

• Random colour change in Blue, Red and Green

• Single strand runs as long as 330 ft (100m)

• IP68

• IK07 (Impact resistance)

• Globe diameter 1-3/8 in (34 mm).

Frosted Globe Option

• Available in Large and Small Globes
